Double Thread Square 300A
Simple high current DOUBLE THREADED Connector, Applied in the field of energy storage Current: 300A
Applied to power control of energy storage battery containers or large equipment, the energy storage fast charging connector can quickly charge the equipment, improve the practicality and convenience of the equipment, and can shorten the charging time from several hours to a few minutes. It adopts the latest anti-disassembly technology, which can effectively prevent accidental detachment or poor contact during charging and ensure the safety of the power grid.
Product Overview
360° wiring in any direction
Small size, saves space
Optional Anti-dust cover

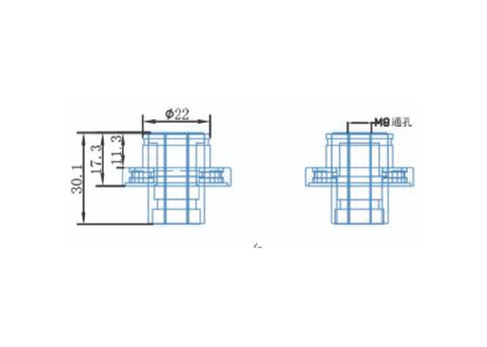

Technical Drawings
Technical Specifications
Property | Description |
|---|---|
Product Specifications | Terminal post (C Series) |
Product Number | 300-A/A |
Product Color | Black Red |
Rated Current & Voltage | 300A. 600V |
Contact Resistance | ≤0.6mΩ |
Work Materials | PA66/H62 Copper Nickel Plated |
Operating Temperature | -40°C ~ 125°C |
Dielectric Strength | ≥ 3000V |
Vibration Requirements | QC/T 1067. 1-2017 |
Protection Level | IP54 |
